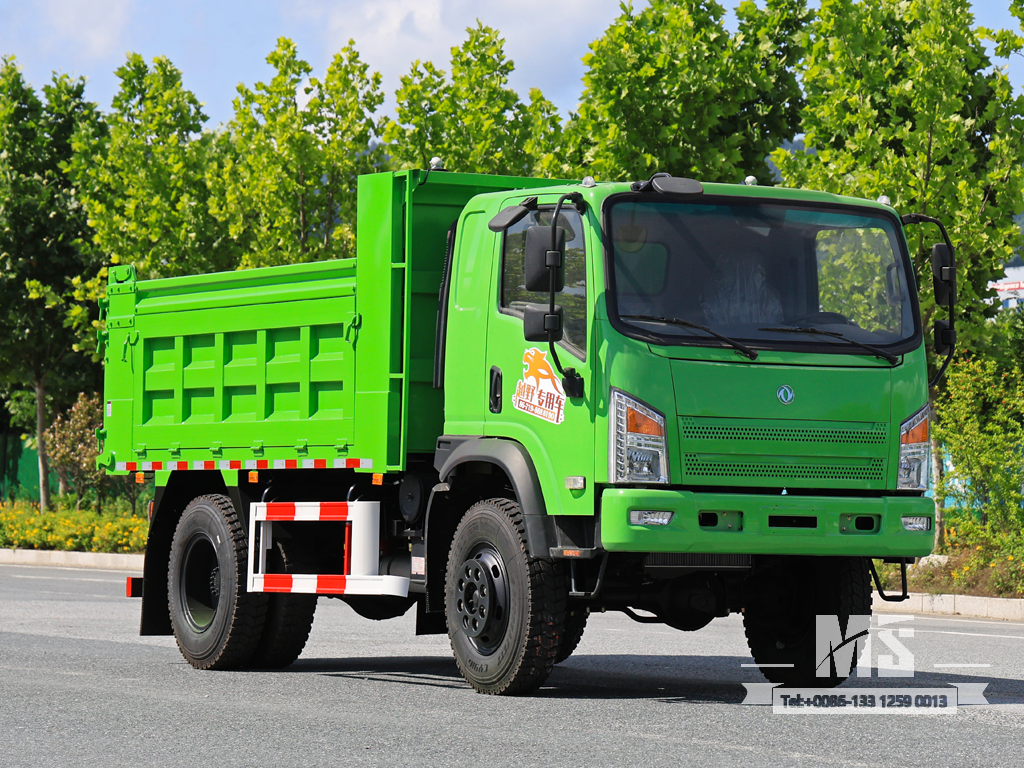

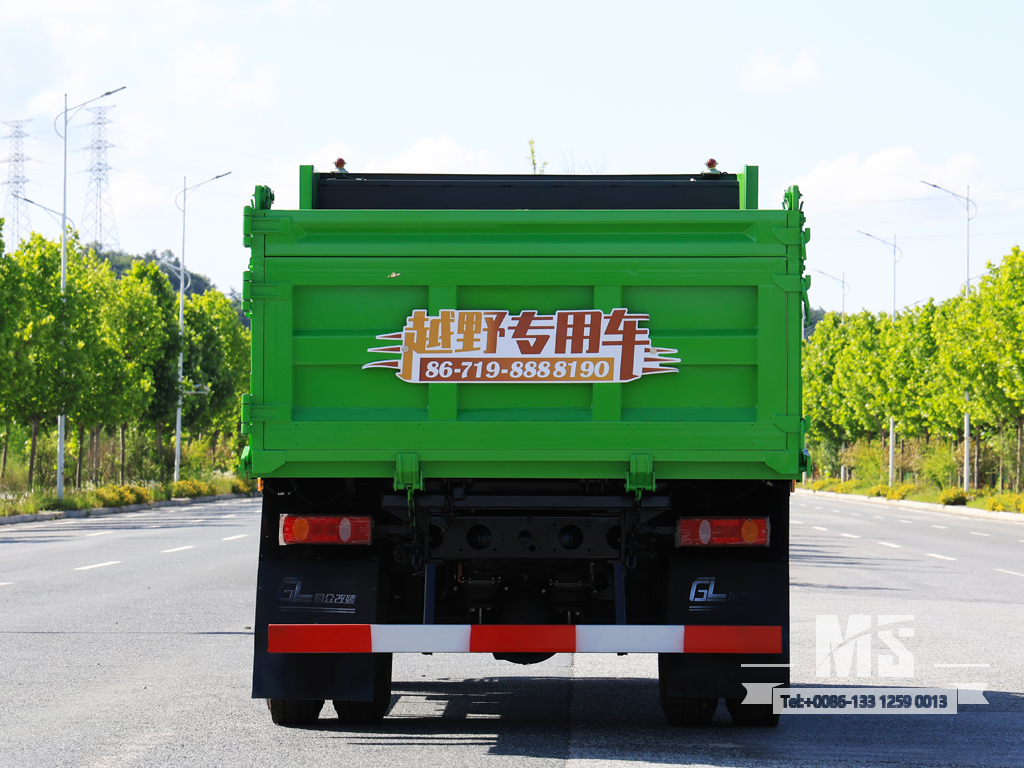

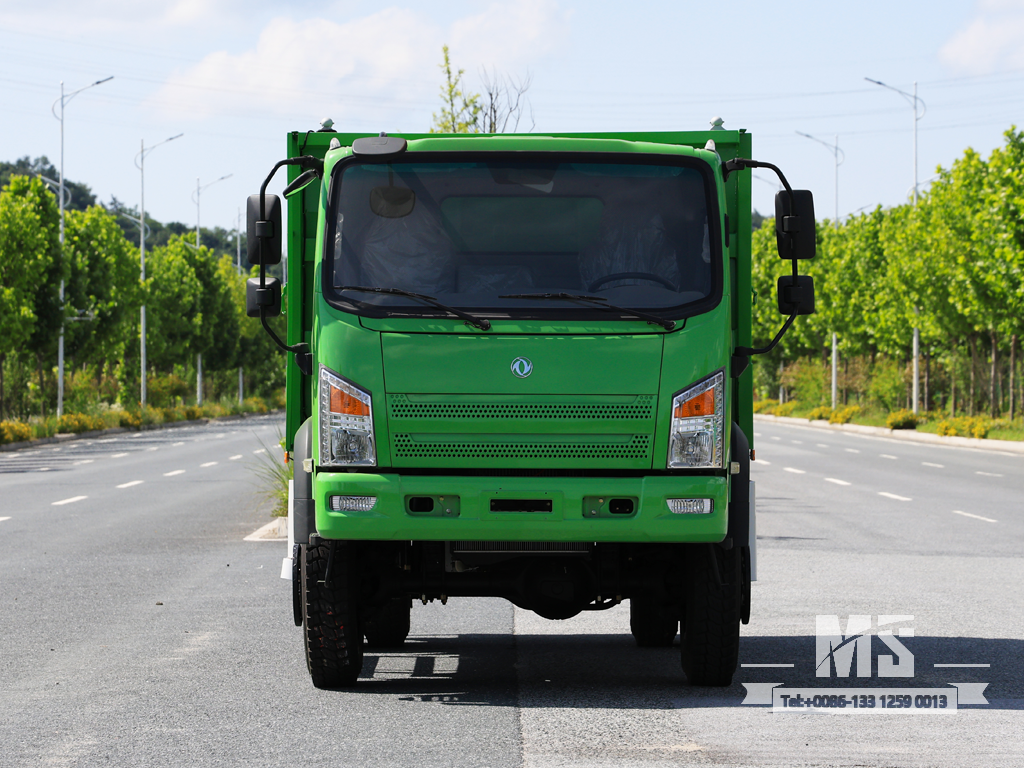

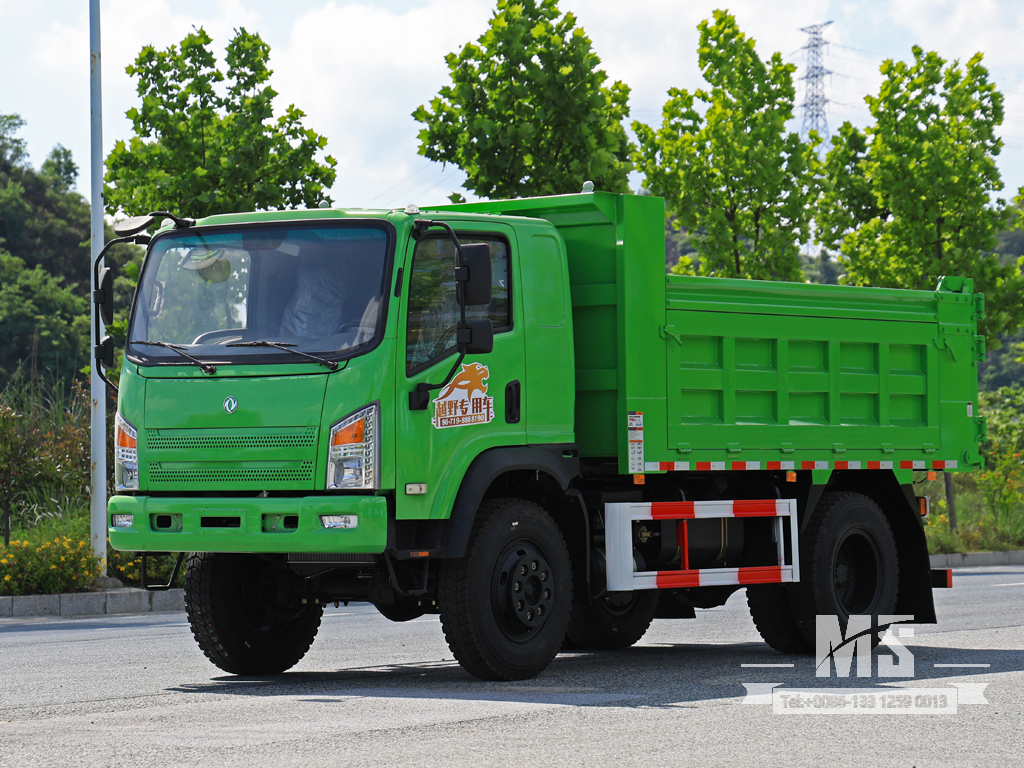

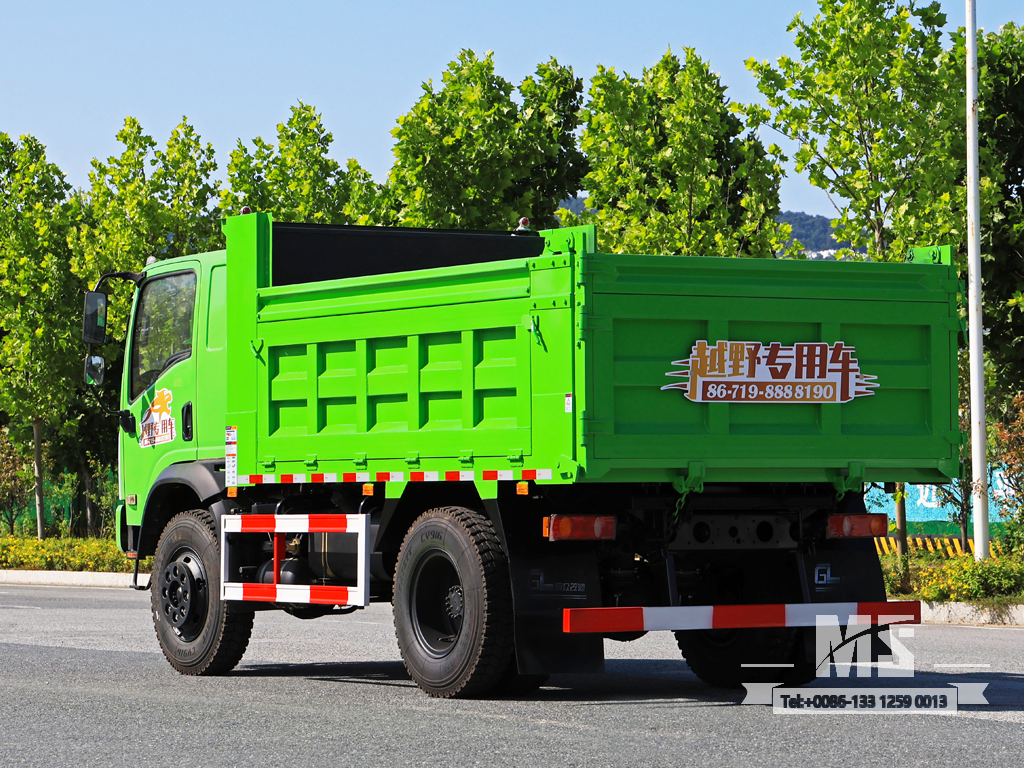

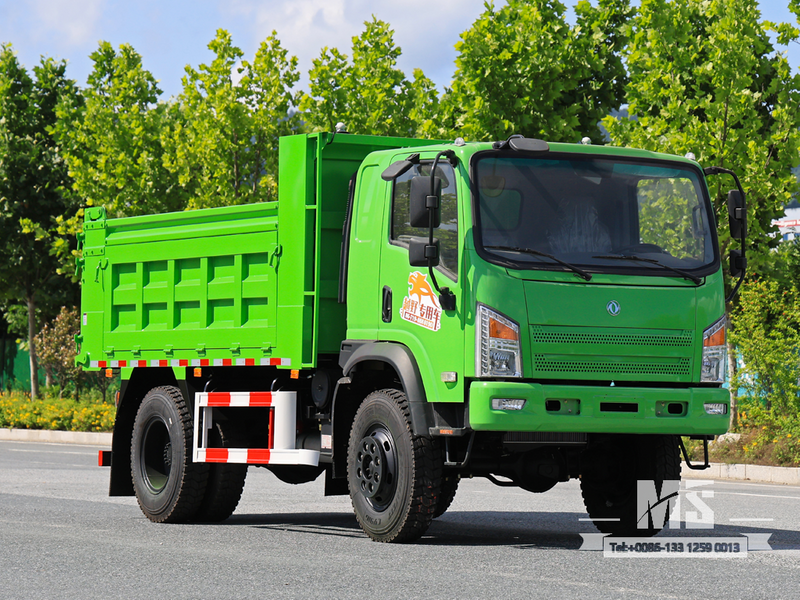

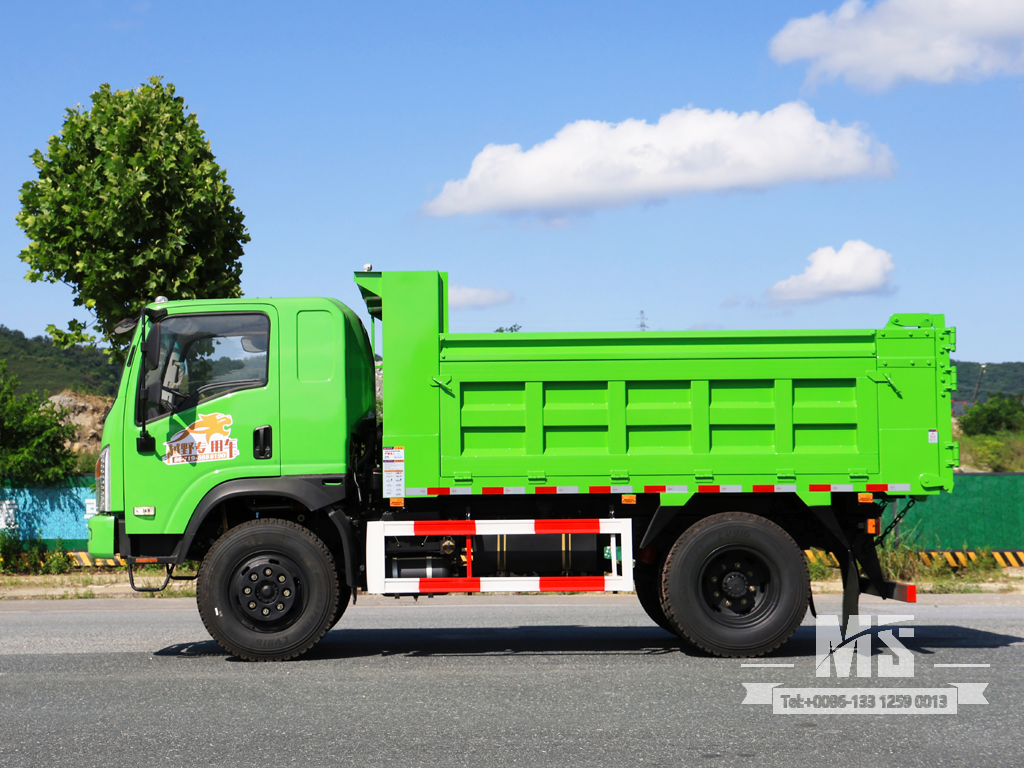

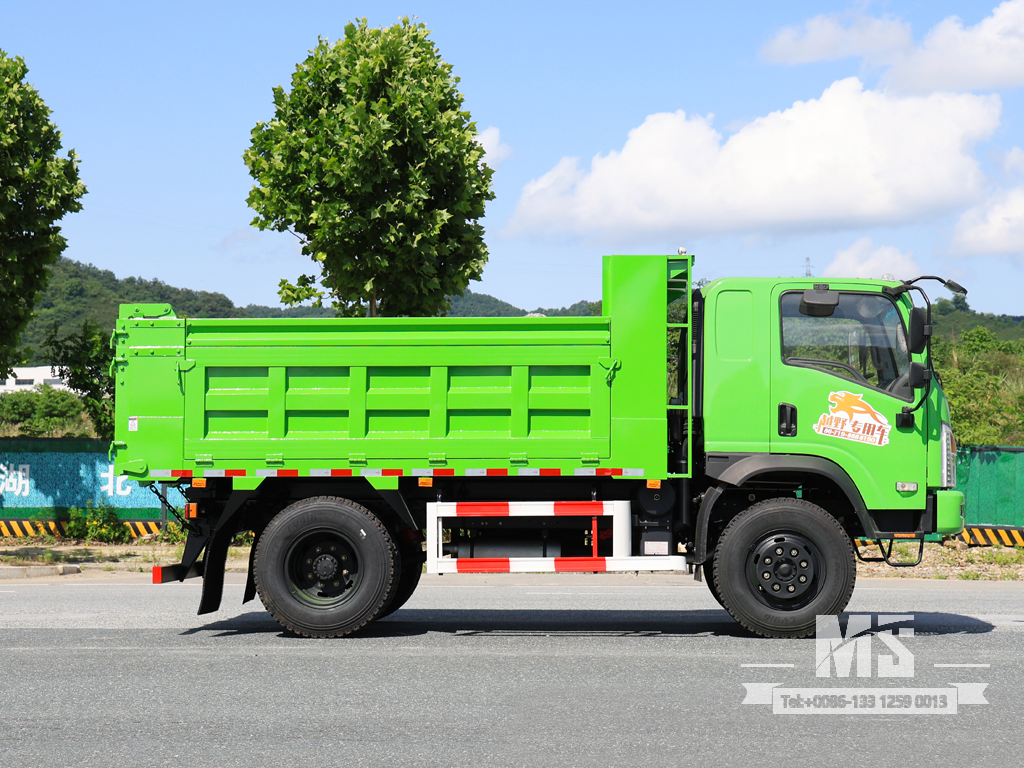

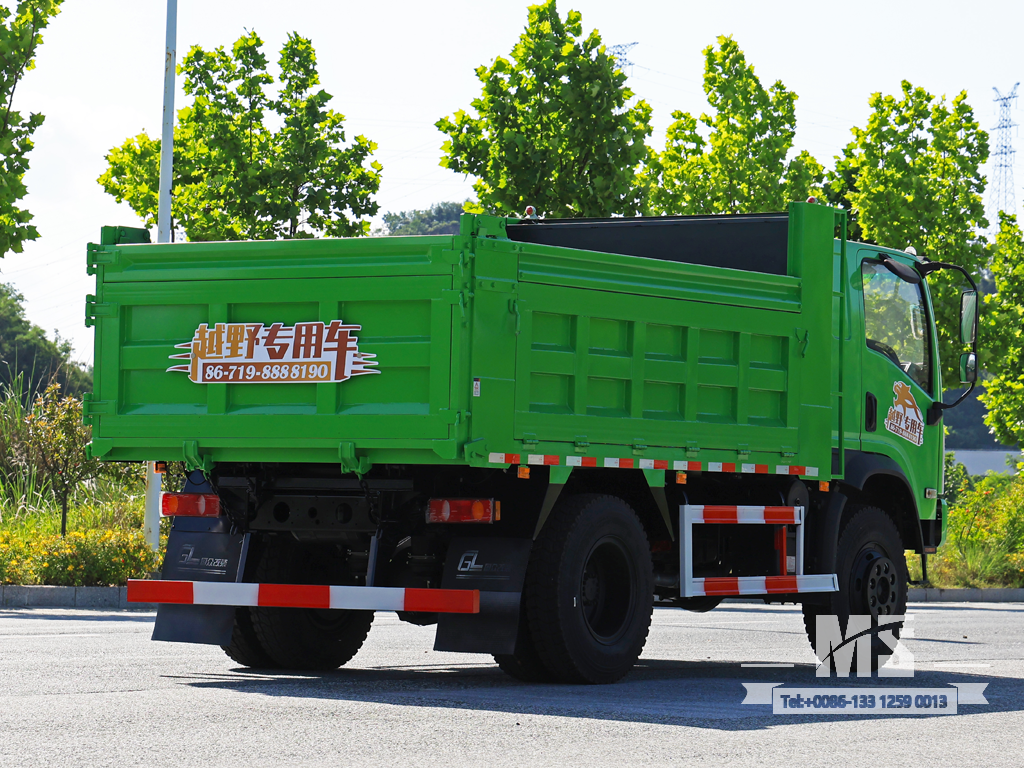

Four-wheel-drive flat-nose light green dump truck
Basic configuration |
Drive type | 4*4 |
Engine | Cummins B170 33 |
Transmission | Shou chi Manual 5-speed |
Transfer case | Heigh and low speed |
Driver Cab | Dongfeng Flat-head half row |
Frame | 860X232(8+6) |
Vehicle Axle |
Dont Alxe 2.7T/Rear Alxe 8T
|
Tire | 9.00R20（6+1 Pieces） |
Detailed parameter |
Overall Dimension | 6370×2480×2650mm |
Cargobox Dimensions | 3950x2450x1100mm(Outer) 3800x2200x(800+200)(Inner) |
Wheelbase | 3300mm |
Wheel track | 1780/1840mm |
GVW | 10700kg |
Curb Weight | 6410kg |
Maximum Power | 125kw |
Engine Displacement | 5.9L |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 21°/16° |
Tank volume | 160L |
Minimum ground clearance | 280mm |
Fording depth | 620mm |
Obstacle height | 280mm |
Note: This configuration is for reference only, please refer to the actual car.
